Introduction to VIDA

Using VIDA is based on constructing three items:

  1. Data, i.e. an image that you want to extract features from.
  2. Cost function, i.e. pick if you want to use the KL or BH divergence
  3. Template, i.e. construct the family of distributions or templates that you will use to approximate the image.

Then all you need to do is minimize the divergence and you will have extracted you image features.

Now lets runs through how that works

Getting started

To load VIDA we follow the typical Julia flow. Note that to include plotting functionality you need to include Plots as well

using VIDA



using CairoMakie
using InteractiveUtils
  Activating project at `~/work/VIDA.jl/VIDA.jl/example`

Step 1 Read in Data

VIDA currently only works with fits images. The fits header is based off of what eht-imaging outputs. So as long as you stick to that standard you should be fine.

To read in an image we just use the VIDA.load_image function which should work with any fits image from ehtim and clean

img = load_image(joinpath(dirname(pathof(VIDA)),"../example/data/example_image.fits"));

To see what this img is lets print the type

println(typeof(img))
SpatialIntensityMap{Float64, RectiGrid{Tuple{X{DimensionalData.Dimensions.Lookups.Sampled{Float64, LinRange{Float64, Int64}, DimensionalData.Dimensions.Lookups.ForwardOrdered, DimensionalData.Dimensions.Lookups.Regular{Float64}, DimensionalData.Dimensions.Lookups.Points, DimensionalData.Dimensions.Lookups.NoMetadata}}, Y{DimensionalData.Dimensions.Lookups.Sampled{Float64, LinRange{Float64, Int64}, DimensionalData.Dimensions.Lookups.ForwardOrdered, DimensionalData.Dimensions.Lookups.Regular{Float64}, DimensionalData.Dimensions.Lookups.Points, DimensionalData.Dimensions.Lookups.NoMetadata}}}, Serial, ComradeBase.MinimalHeader{Float64}, Float64}, Matrix{Float64}, Tuple{X{DimensionalData.Dimensions.Lookups.Sampled{Float64, LinRange{Float64, Int64}, DimensionalData.Dimensions.Lookups.ForwardOrdered, DimensionalData.Dimensions.Lookups.Regular{Float64}, DimensionalData.Dimensions.Lookups.Points, DimensionalData.Dimensions.Lookups.NoMetadata}}, Y{DimensionalData.Dimensions.Lookups.Sampled{Float64, LinRange{Float64, Int64}, DimensionalData.Dimensions.Lookups.ForwardOrdered, DimensionalData.Dimensions.Lookups.Regular{Float64}, DimensionalData.Dimensions.Lookups.Points, DimensionalData.Dimensions.Lookups.NoMetadata}}}, Tuple{}, Symbol}

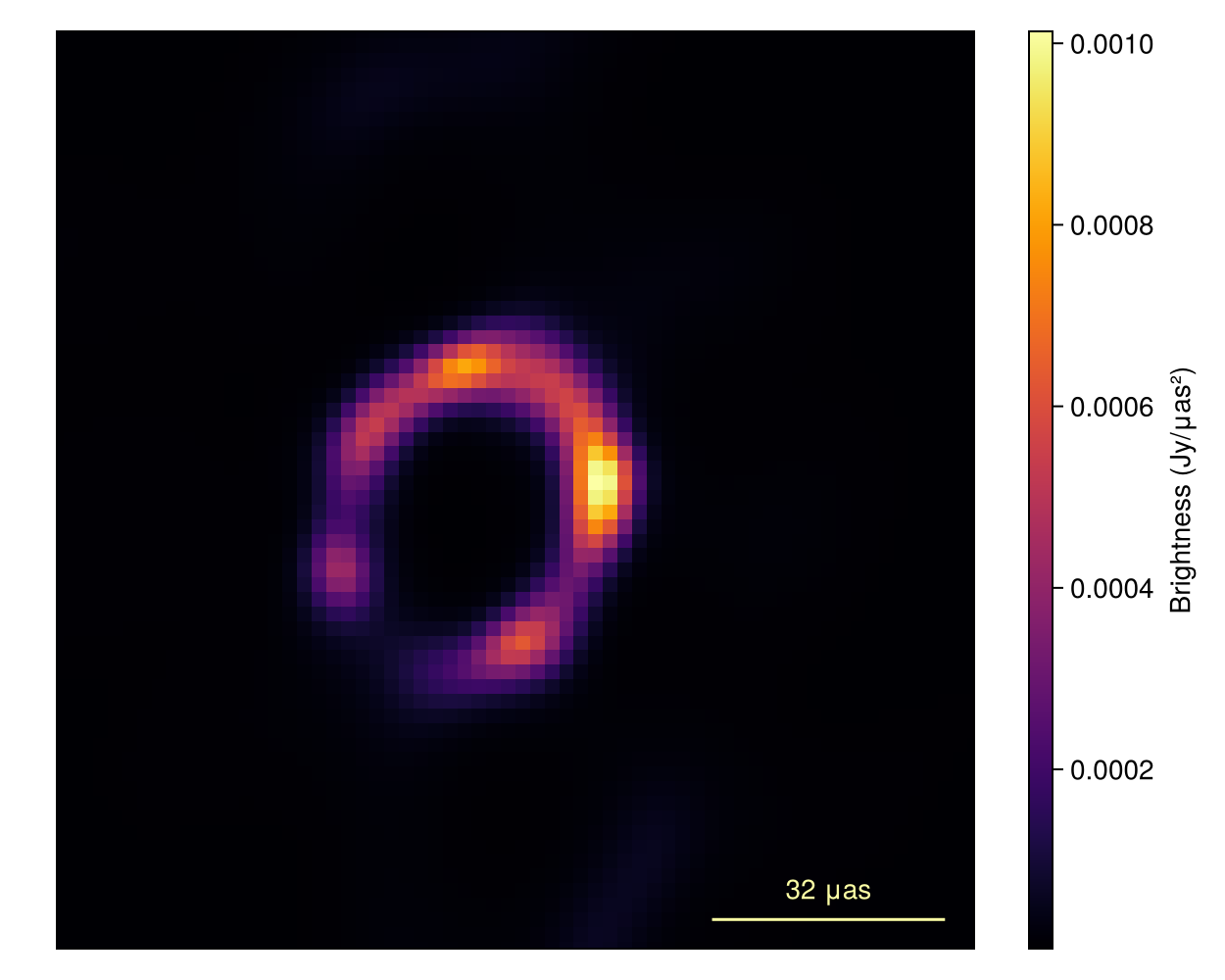

To plot the image we use the VLBISkyModels.imageviz function.

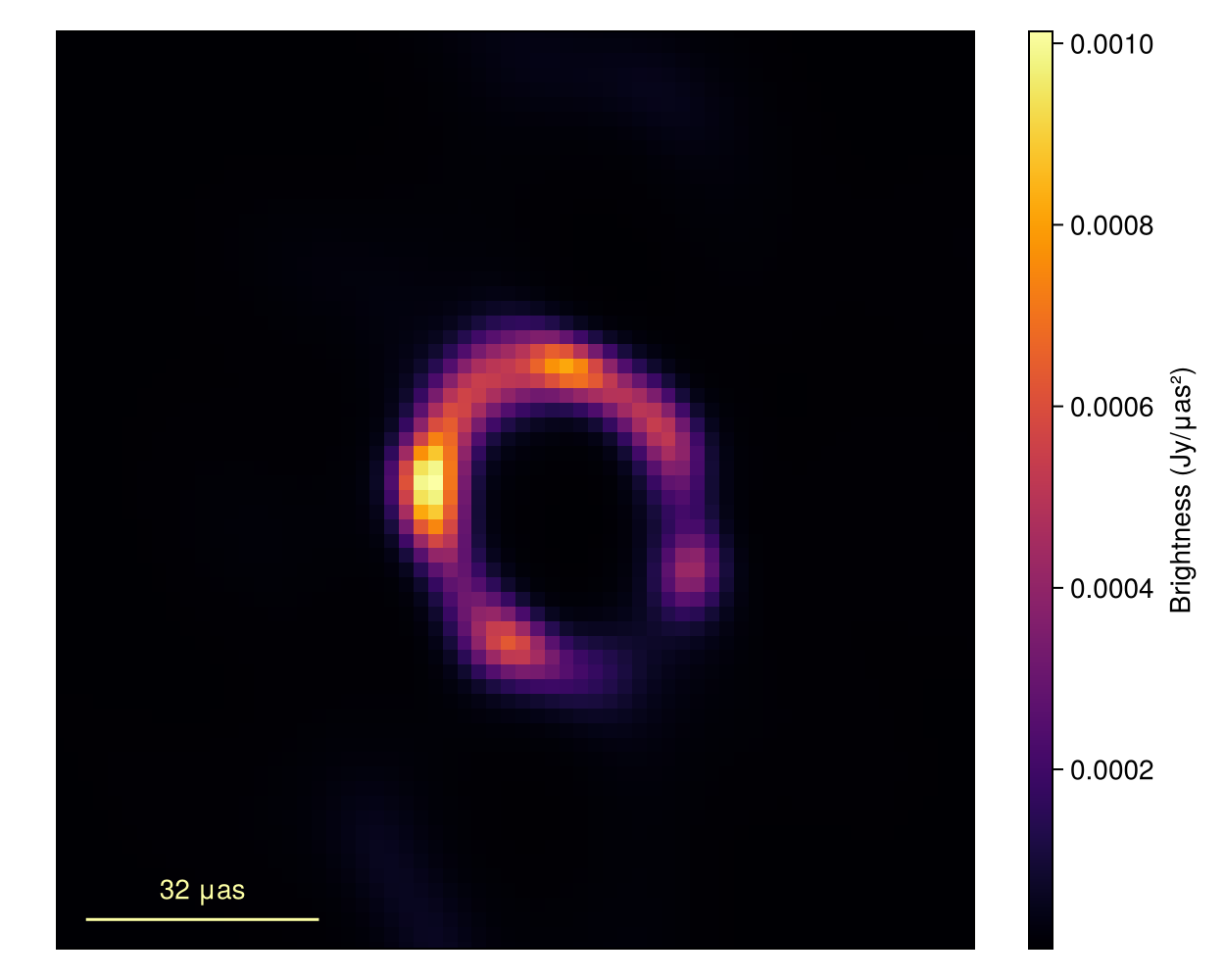

imageviz(img)
Example block output

So from the output we see that img is a IntensityMap type. This follows ComradeBase and VLBISkyModels, see their docs for more information.

Julia isn't a traditional class OOP language. Namely, methods/functions are first class and aren't members of a class. Instead how a function behaves is dependent on the type of argument inputs. This is known as something called multimethods or multiple dispatch where at run-time the type of functions called is determined by the arguments.

In some sense OOP is just a multiple dispatch type language where the our type of dispatch only depends on the class, i.e. the self argument in Python classes.

Now because of the lack of classes sometimes it can be difficult to figure out which functions will act of our datatypes, e.g. the IntensityMap type. Fortunately, Julia has some convenience functions that let you see which functions/methods can act of the IntensityMap type

methodswith(IntensityMap)



# Creating a divergence
40-element Vector{Method}:

In order to find the optimal template you need to first decide on your objective or cost function. In VIDA we use probaility divergences to measure differences between the template and image. A divergence is defined as an abstract type VIDA.AbstractDivergence.

bh = Bhattacharyya(img);
kl = KullbackLeibler(img);

Now to evaluate the divergence we need a template to compare the image to. For instance lets create a few different templates

gr = GaussianRing(μas2rad(20.0), μas2rad(5.0), 0.0, 0.0)
ggr = EllipticalSlashedGaussianRing(
                          μas2rad(20.0), # r0
                          μas2rad(5.0), # σ
                          0.2, # τ
                          0.78, # ξτ
                          0.5, # s
                          0.78, # ξs
                          μas2rad(-10.0), # x0
                          0.0 # y0
                        )
ModifiedModel
  base model: RingTemplate{RadialGaussian{Float64}, AzimuthalCosine{1, Float64, Float64}}(RadialGaussian{Float64}(0.25), AzimuthalCosine{1, Float64, Float64}((0.5,), (0.0,)))
  Modifiers:
    1. Rotate{Float64}
    2. Stretch{Float64, Float64, Float64}
    3. Rotate{Float64}
    4. Shift{Float64, Float64, Float64}

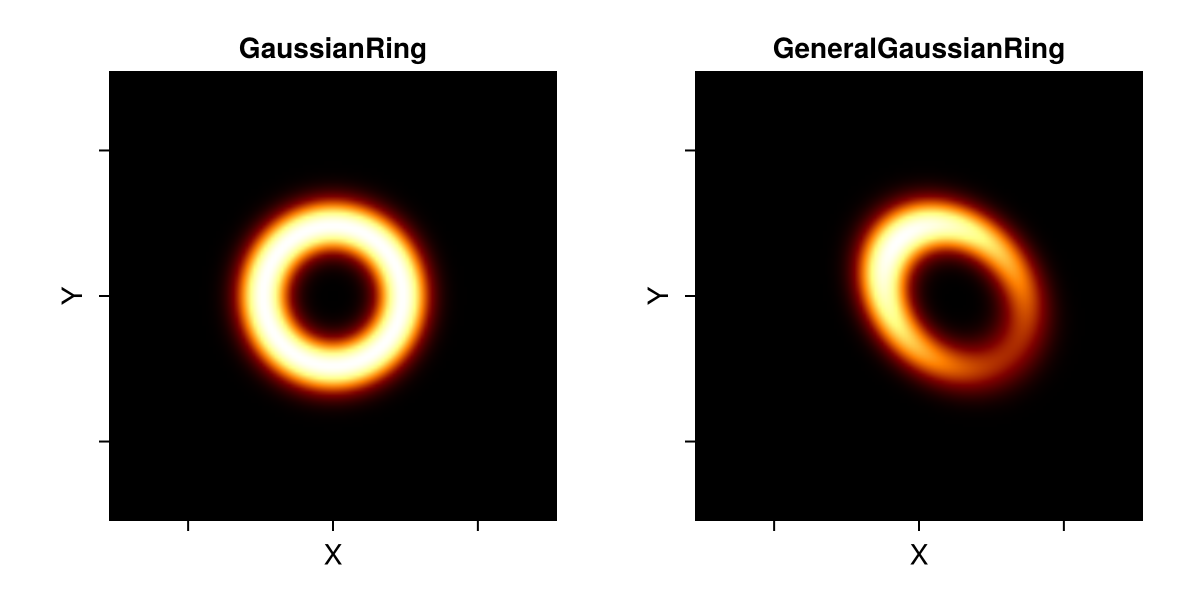

We can also plot both templates

g = imagepixels(μas2rad(128.0), μas2rad(128.0), 128, 128)
fig = Figure(;size=(600, 300))
axis = axis=(aspect=1, xticklabelsvisible=false, yticklabelsvisible=false)
image(fig[1, 1], intensitymap(gr, g), colormap=:afmhot,  axis=merge(axis, (title="GaussianRing",)))
image(fig[1, 2], intensitymap(ggr,g), colormap=:afmhot,  axis=merge(axis, (title="GeneralGaussianRing",)))
fig
Example block output

VIDA has a number of templates defined. These are all subtypes of the AbstractTemplate type. To see which templates are implemented you can use the subtype method:

subtypes(VLBISkyModels.AbstractImageTemplate)
5-element Vector{Any}:
 CosineRing
 RingTemplate
 VLBISkyModels.Constant
 VLBISkyModels.GaussDisk
 VLBISkyModels.LogSpiral

Additionally as of VIDA 0.11 we can also use any VLBISkyModels model and any model that satisfies the interface described here.

Using VLBISkyModels interface we can also combine templates together

add = gr + 2.0*shifted(gr, μas2rad(-10.0), μas2rad(10.0))
VLBISkyModels.AddModel(
model1: ModifiedModel
  base model: RingTemplate{RadialGaussian{Float64}, AzimuthalUniform{Float64}}(RadialGaussian{Float64}(0.25), AzimuthalUniform{Float64}())
  Modifiers:
    1. Stretch{Float64, Float64, Float64}
    2. Shift{Float64, Float64, Float64}
model2: ModifiedModel
  base model: RingTemplate{RadialGaussian{Float64}, AzimuthalUniform{Float64}}(RadialGaussian{Float64}(0.25), AzimuthalUniform{Float64}())
  Modifiers:
    1. Stretch{Float64, Float64, Float64}
    2. Shift{Float64, Float64, Float64}
    3. Shift{Float64, Float64, Float64}
    4. Renormalize{Float64}
)

To evaluate the divergence between our template and image we then just evaluate the VIDA.divergence on the template

@show divergence(kl, add);
@show divergence(kl, ggr);
@show divergence(kl, add);
divergence(kl, add) = 1.3524191660571612
divergence(kl, ggr) = 0.7758112802401305
divergence(kl, add) = 1.3524191660571612

Now neither template is really a great approximation to the true image. For instance visually they look quite different, which can be checked with the VIDA.triptic function

figa,ax = triptic(img, gr)
figa
figb,ax = triptic(img, ggr)
figb
figc,ax = triptic(img, add)
figc

Extracting the Optimal Template

To extract the optimal template the first thing you need to do is define your a function that construct the template and parameterization you will consider

function gr_temp(θ)
    return GaussianRing(θ.r0, θ.σ, θ.x0, θ.y0)
end
gr_temp (generic function with 1 method)

We also want to select the domain that we want to search over

lower = map(μas2rad, (r0 = 5.0,  σ = 0.01, x0 = -60.0, y0 = -60.0))
upper = map(μas2rad, (r0 = 60.0, σ = 20.0, x0 = 60.0, y0 = 60.0))
(r0 = 2.908882086657216e-10, σ = 9.69627362219072e-11, x0 = 2.908882086657216e-10, y0 = 2.908882086657216e-10)

Given that we can form the VIDA.VIDAProblem type.

prob = VIDAProblem(bh, gr_temp, lower, upper);

Now we need to optimize. VIDA uses the Optimization.jl meta package for optimization. That means that we can use any optimization package that works with optimization. For information about possible optimizers see their docs.

For VIDA the classic optimizer is using the BlackBoxOptim.jl. To use BlackBox optim we need to load the required package

using OptimizationBBO

However, for this tutorial we will use the BlackBoxOptim optimizer.

To optimize all you need to do is run the VIDA.vida function.

xopt, optfilt, divmin = vida(prob, BBO_de_rand_1_bin_radiuslimited(); maxiters=100_000)
fig, ax = triptic(img, optfilt)
fig

Well that seemed to do a terrible job. The reason is that a lot of these images tend to have some low level flux throughout the image. To account for this the template tends to get very big to absorb some of this flux. To combat this you can add a constant background template to the problem.

gr_temp_cont(θ) = GaussianRing(θ.r0, θ.σ, θ.x0, θ.y0) + θ.f*VLBISkyModels.Constant((μas2rad(100.0)))
lower = (r0 = μas2rad(5.0),  σ = μas2rad(0.01), x0 = μas2rad(-60.0), y0 = μas2rad(-60.0), f=1e-6)
upper = (r0 = μas2rad(60.0), σ = μas2rad(20.0), x0 = μas2rad(60.0), y0 = μas2rad(60.0), f=10.0)
prob = VIDAProblem(bh, gr_temp_cont, lower, upper);
xopt, optfilt, divmin = vida(prob, BBO_de_rand_1_bin_radiuslimited(); maxiters=50_000)
((r0 = 9.070140740361121e-11, σ = 1.7011117886042284e-11, x0 = -2.8522006748654913e-11, y0 = -1.3395570920603828e-11, f = 0.09672590031656295), VLBISkyModels.AddModel(
model1: ModifiedModel
  base model: RingTemplate{RadialGaussian{Float64}, AzimuthalUniform{Float64}}(RadialGaussian{Float64}(0.1875507599385387), AzimuthalUniform{Float64}())
  Modifiers:
    1. Stretch{Float64, Float64, Float64}
    2. Shift{Float64, Float64, Float64}
model2: ModifiedModel
  base model: VLBISkyModels.Constant{Float64}(4.84813681109536e-10)
  Modifiers:
    1. Renormalize{Float64}
), 0.05546046132335986)
fig, ax = triptic(img, optfilt)
fig

That's much better! Now if you wanted to capture the asymmetry in the ring you can use other templates, for example the CosineRing template. Note that this template tends to be a little harder to fit.

cos_temp(θ) = EllipticalSlashedGaussianRing(θ.r0, θ.σ, θ.τ, θ.ξτ, θ.s, θ.ξs, θ.x0, θ.y0) + θ.f*θ.f*VLBISkyModels.Constant(μas2rad(100.0))
lower = (r0 = μas2rad(1.0),  σ = μas2rad(0.01), τ=0.0, ξτ=-π/2, s=0.001, ξs=-1π, x0 = μas2rad(-60.0), y0 = μas2rad(-60.0), f=1e-6)
upper = (r0 = μas2rad(60.0), σ = μas2rad(20.0), τ=0.5, ξτ=π/2, s=0.999, ξs=1π, x0 = μas2rad(60.0), y0 = μas2rad(60.0), f=10.0)
prob = VIDAProblem(bh, cos_temp, lower, upper);
xopt, optfilt, divmin = vida(prob, BBO_de_rand_1_bin_radiuslimited(); maxiters=50_000);
fig, ax = triptic(img, optfilt)
fig

Now looks pretty great! To see how to add a custom template see the Adding a Custom Template page.
